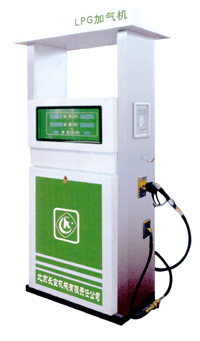

Advantages of Changkong LPG
volumetric flowmeter dispenser |
|
|
Good safety property, highly accurate, easy operation.
Online operation with intreface for IC card, update simply.
Prefabricate tax-control, automatic temperature compensation.
Refueling is able to be in many modes, such as quantum, non-quantum,litre,Kg. |
|
|
|
All electronics are explosion proof .
Explosion-proof No:
CE991058 explosion-proof power supply control box FDX-1
CE991059 explosion-proof junction box FJX-1
CE012001 Micro-processer controller
Micro-processor control system, with advanced integrated circuits, is highly interference rejection. It has overflow and overpressure protection, and can stop automatically when reaching required amount. Data information can be retained for nearly 10 years. It is also able to check error automatically |
|
Large Display with Standby Indicator Light. |
|
|
Heating automatically is suitable for high cold areas. |
|
JYQ-45B Serice LPG volumetric flowmeter
dispenser consists of: |
|
|
Imported volumetric flowmeter,
Imported breakaway satety valve,
Imported solenoid valves,
Imported nozzle, |
|
Main Technical Date for JYQ-45B Dispenser
serices. |
|
|
Measuring accuracy |
± 0.5% |
Nominal flowrate |
45 L/min |
Nominal working pressure |
2 Mpa |
Once metering range |
0-9999.99 m3,kg,yuan |
Cumulative counting range |
0-999999.99 m3,kg,yuan |
Preset range |
1-9999 m3,kg,yuan |
Price setting range |
0.01-99.99 yuan |
Ambient temperature |
-30℃ - +50℃ |
Relative humidity |
≯90% |
Power supply |
220V±20% , 50Hz±1Hz |
Dimension |
1160×590×2175 mm(two-hoses)
800×590×2000 mm(single-hose) |
Weight |
200 Kg(two-hoses)
150 Kg(single-hose) |
Explosion proof |
mixture of cut-off and self-safety |
|
|
|
|
