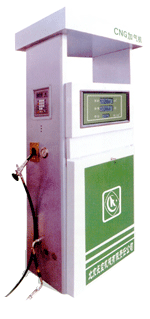

Advantages of Changkong CNG Dispenser |
|
|
Good safety property, highly accurate, easy operation.
Online operation with intreface for IC card, update simply.
Prefabricate tax-control, automatic temperature compensation.
Flowmeter is never wear and tear.
Quickly refueling series fall into many modes.For instance,quantum, non-quantum,M3,Kg. |
|
|
|
All electronics are explosion proof .
Explosion-proof No:
CE991058 explosion-proof power supply control box FDX-1
CE991059 explosion-proof junction box FJX-1
CE002060 Micro-processer controller
Micro-processor control system, with advanced integrated circuits, is highly interference rejection. It has overpressure protection, and can stop automatically when reaching required amount. Data information can be retained for nearly 10 years. It is also able to check error automatically. |
|
Large Display with Standby Indicator Light. |
|
|
Heating automatically is suitable for high cold areas. |
|
JQ-20 Serice CNG Dispenser consists of: |
|
|
JQ-20 Serice CNG Dispenser consists of:
Imported mass flowmeter,
High-pressure piping system,
Explosion-proof power control system,
Imported nozzle,
Micro-processor controller,
Imported breakaway satety valve,
Imported valves, |
|
Main Technical Data for JYQ-20 Dispenser series. |
|
|
|
Measuring accuracy |
± 0.5% |
Nominal working pressure |
20 MPa |
Price setting range |
0.01-99.99 yuan |
Ambient temperature |
-30℃ - +50℃ |
Relative humidity |
≯90% |
Once metering range |
0-9999.99 m3,kg,yuan |
Cumulative counting range |
0-999999.99 m3,kg,yuan |
Preset range |
1-9999 m3,kg,yuan |
Flowrate range |
6-20 Nm3/min |
Power supply |
220V±20% , 50Hz±1Hz |
Dimension |
1160×590×2175 mm(two-hoses)
800×590×2000 mm(single-hose) |
Weight |
200 Kg(two-hoses)
150 Kg(single-hose) |
Explosion proof |
mixture of cut-off and self-safety |
|
|
|
|
