Detect theory: Electrochemical
Detected gases: CO, H2S
Detect mode: diffusion
Range: CO: 0～1000ppm
H2S: 0～100ppm
Accuracy: ±5%FS
Response time: less than 15s
Alarm mode: audible and visual alarm
Explosion proof mode: Intrinsic safety “i ”
Explosion proof Mark: Exib ⅡCT6
Temperature range: —20℃～+45℃
Relative humidity: 20%～95%RH
Power supply: lithium battery
Power consumption: 1m W (under normal temperature)
Dimension: 85mm*65mm*20mm

Product Characteristics

High measurement accuracy
The sensor adopts import gas sensitive components with the characteristic of high accuracy, strong reliability, quick response and renewing time, strong anti-jamming and easy to choose gas.
Intuitionistic and clear shows
Using LCD liquid crystal screen with back light， buttons operating could light the back light, it will extinguish automatically if no operating within 3 seconds.
Low consumption
Small volume, light weight, low consumption.
Intrinsic safety
Proof explosion structure can be used in dangerous 1,2 areas.
High response speed
Imbibing working principle makes the response speed faster
Long working time and life
Selecting high-powered nickel battery with long working time. Also using electrification protection and low pressure, which ensures the battery more reliable and long using life.

Panel Display

1.Double color indicator light
2.Zero icon
3.Alarm point setting icon
4.H2S icon
5.CO icon
6.Concentration display area
7.Time display area
8.Gas diffuse mouth

9.Demarcation icon
10.Time setting icon
11. Battery symbol
12.Unit symbol
13.Entry key
14.Cross-up
15.Cross-down

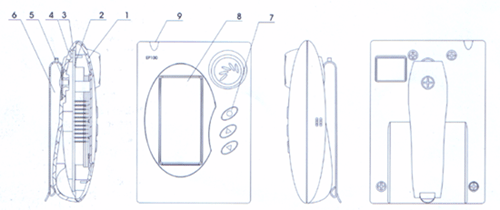

Total Structure Chart

1.Front panel
2. PCB
3.Back panel
4.Cross-recessed pan head screw
5. Hanging bottons fixed bolt screw
6.Hanging bvttons
7. Button
8.Transparent lens
9.Light leading bloch

Working principle

The detector adopts pump absorption way to do sampling of the measure combustible gas. The sensor changes the concentration of the sampling gas into electric quantity signal. After magnifying of the signal, send it to the MCU to complete the concentration measurement and display.
